    Manufacturer: Magnat

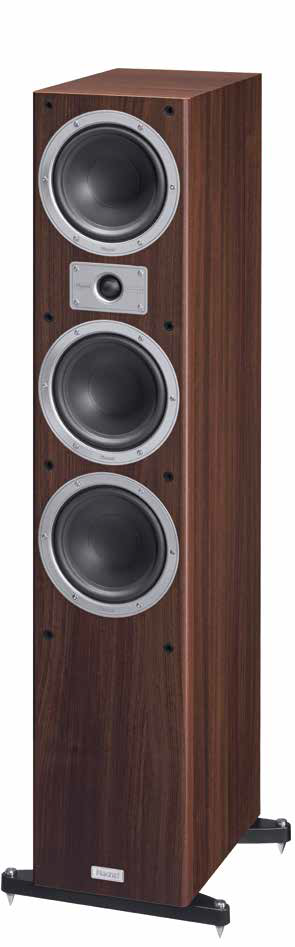

    Tempus 77

    3-way bass reflex floorstanding speaker

    Ash Decor Black: ART. NO.: 145 220/EAN: 40 18843 45220 3
    Ash Decor Mocca: ART. NO.: 145 222/EAN: 40 18843 45222 7

    The flagship model, and of course the perfect choice of front speaker in a Tempus surround system, is the 3-way Tempus 77 bass reflex floorstanding speaker. The speaker, which stands slightly over 1 m in height, is equipped with two 170 mm FE Dynamics woofers and a mid-range driver of the same diameter. The Klippel-optimized construction ensures maximum load capacity and optimum precision in all frequency ranges. With its dispersion-optimized sound guide and powerful neodymium drive, the newly developed 25 mm fmax tweeter generates an exquisite resolution. The chassis are located in a sturdy, particularly low-resonance housing consisting of E1-MDF panels. Thanks to its excellent efficiency rating of 92 dB, the Tempus series permits a high degree of flexibility when it comes to selecting an amplifier.

    Products specifications
    Principle 3-way bass reflex
    Equipment 2 x 6.5" woofer, 1 x 6.5" midrange, 1" tweeter
    Power Handling (RMS/Max) 175/320 watts
    Impedance 4-8 ohms
    Frequency Response 22 – 45,000 Hz
    Crossover Frequencies 320 Hz, 3.300 Hz
    Recommended Amplifier Output ab 30 watts
    Sensitivity (2.8V/1m) 92 dB
    Cabinet surface Ash Decor Black, Ash Decor Mocca
    Dimensions (WxHxD) (incl. base) 295 x 1025 x 320 mm
    Weight 15.5 kg
